2'' 5CCT 1" deep regressed panel : DRR2-CC-BK

No Image
Available

Image may not reflect selected features

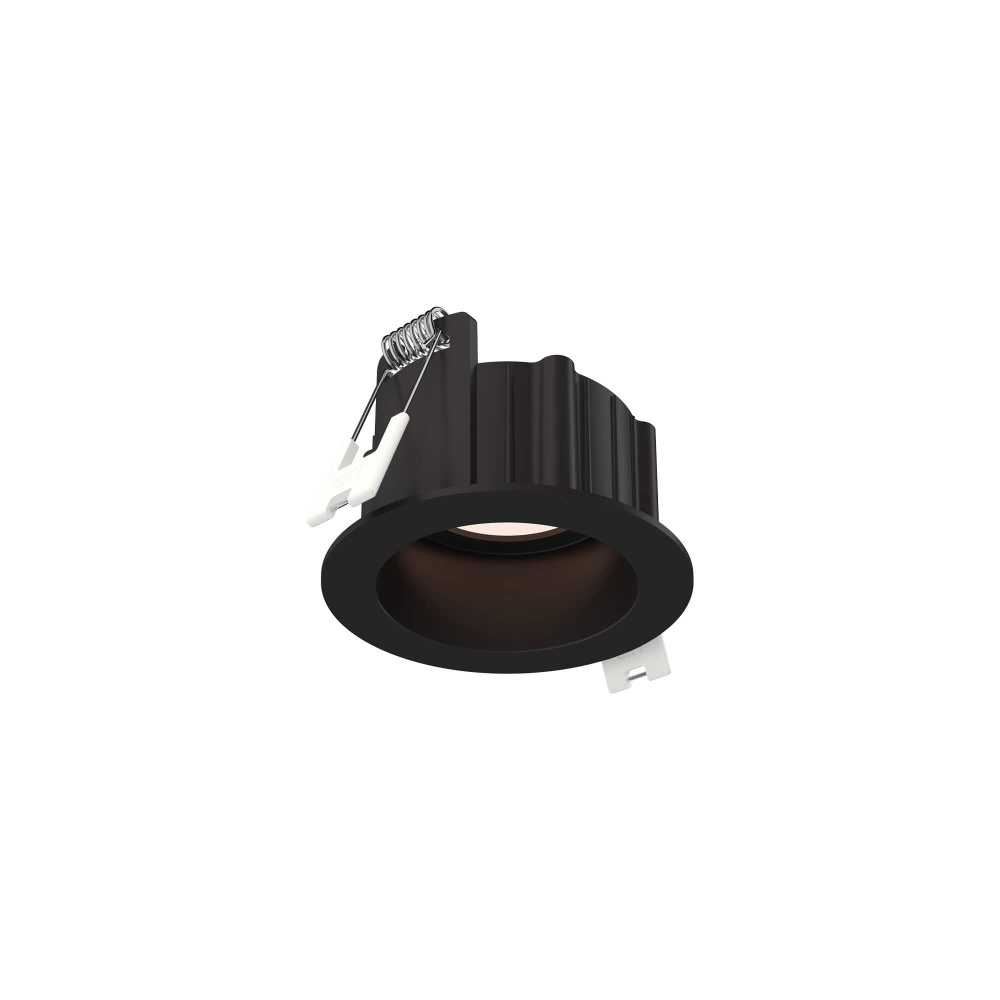

2'' 5CCT 1" deep regressed panel (DRR2-CC-BK)

The Notch series of regressed downlights is characterized by a deep-set LED position which greatly reduces glare, neatly packaged in a price-conscious solution to general lighting.

Downloads

Click Here to View Instruction Sheet

Click Here to View Catalog Page

Product Specification

Item #

DRR2-CC-BK

Dimensions

Height: 1.88"

Width: 3.13"

Length: 3.13"

Additional product details

Category

Recessed

Subcategory

Regressed

Finish

White

Family

Notch

Voltage

120 V

Number of Bulbs

1 Bulbs

Bulb Dimmable

Yes

Bulb Hours

50000

Kelvin

2700, 3000, 3500, 4000, 5000

Material

Aluminum

Ship Carton Height

2.76

Ship Carton Length

6.1

Ship Carton Width

4.72

Ship Weight

1.5

Warranty

5 Years Limited

Weight

Air-Tight (ASTM E283--4)

Yes

Beam Angle

100°

Bulb CRI

Country of Origin

China

Delivered Lumens

500

Dimmer Type

Triac

Energy Star

IC Certification

Yes

Indoor

Yes

IP Rating

IP44

JA8

Yes

Lens Material

Acrylic

Location Rating

Wet Rated

Max Wattage

9 W

Maximum Working Temperature

40°C

Minimum Working Temperature

-20°C

Outdoor

Yes

Prop 65

Yes

Safety Rating

ETL Approved

Shipping Master Height

15.75

Shipping Master Length

Shipping Master Quantity

Shipping Master Width

10.25

Title 24

Yes

Wiring

Hardwired

Other Details:

Edge lit technology
Frosted lens
Over 50,000 hours of service life
Smooth 360 degree wide spread
Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
