Multi CCT Slim Round Recessed 2 Hour Fire Rated : 5004-FR-CC-WH

No Image
Available

Image may not reflect selected features

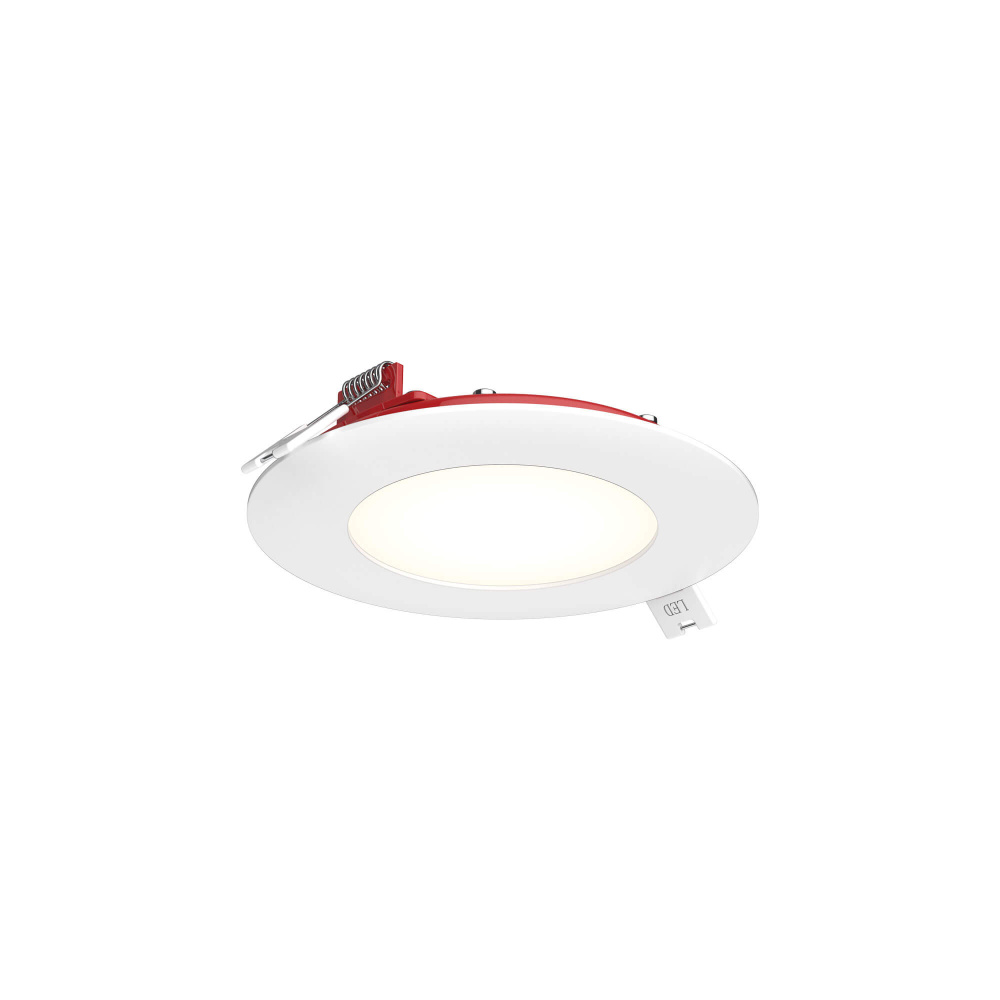

Multi CCT Slim Round Recessed 2 Hour Fire Rated (5004-FR-CC-WH)

Our new LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.

Downloads

Click Here to View Instruction Sheet

Click Here to View Catalog Page

Product Specification

Item #

5004-FR-CC-WH

Dimensions

Height: 1.13"

Width: 5.06"

Length: 5.06"

Additional product details

Category

Recessed

Subcategory

Slim Panel

Finish

White

Family

Excel

Voltage

120 V

Number of Bulbs

1 Bulbs

Bulb Dimmable

Yes

Bulb Hours

50000

Kelvin

2700/3000/3500/4000/5000

Material

Aluminum

Ship Carton Height

Ship Carton Length

Ship Carton Width

5.25

Ship Weight

1.1

Warranty

5 Years Limited

Weight

Air-Tight (ASTM E283--4)

Yes

Beam Angle

110°

Bulb CRI

Country of Origin

China

Delivered Lumens

825

Dimmer Type

Triac/ELV

Energy Star

IC Certification

Yes

Indoor

Yes

IP Rating

IP44

JA8

Yes

Lens Material

Plastic

Location Rating

Wet Rated

Max Wattage

11 W

Maximum Working Temperature

40°C

Minimum Working Temperature

-20°C

Outdoor

Yes

Prop 65

Yes

Safety Rating

ETL Approved

Shipping Master Height

Shipping Master Length

Shipping Master Quantity

Shipping Master Weight

Shipping Master Width

12.5

Title 24

Yes

Wiring

Hardwired

Other Details:

2-hour fire-rated without additional housing or hardware (in accordance with UL 263, ASTM E119, and CAN ULC S101)
Every fixture includes a junction box with an integrated driver
IC certification (suitable for direct contact with insulation)
Over 35,000 hours of service life
Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K

Call for Price

Qty:

BASE PRICE:

/ / 1

($43.00 / 1)
